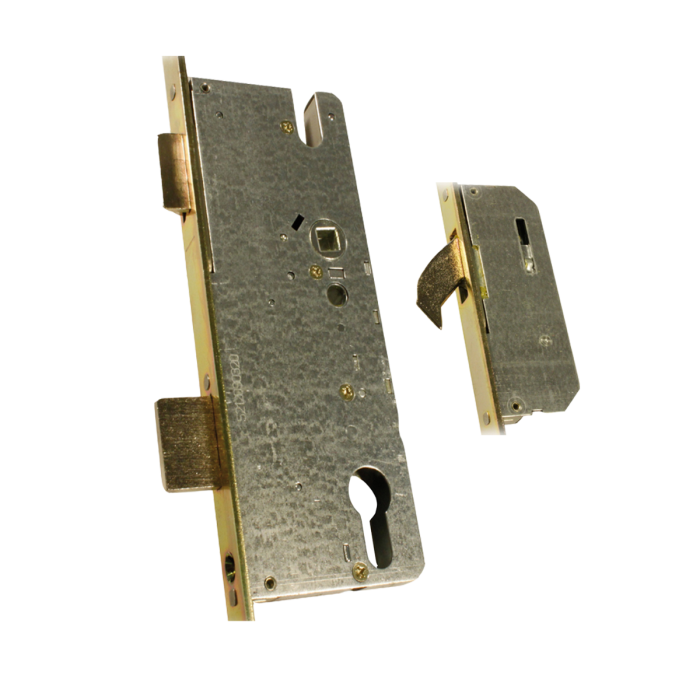

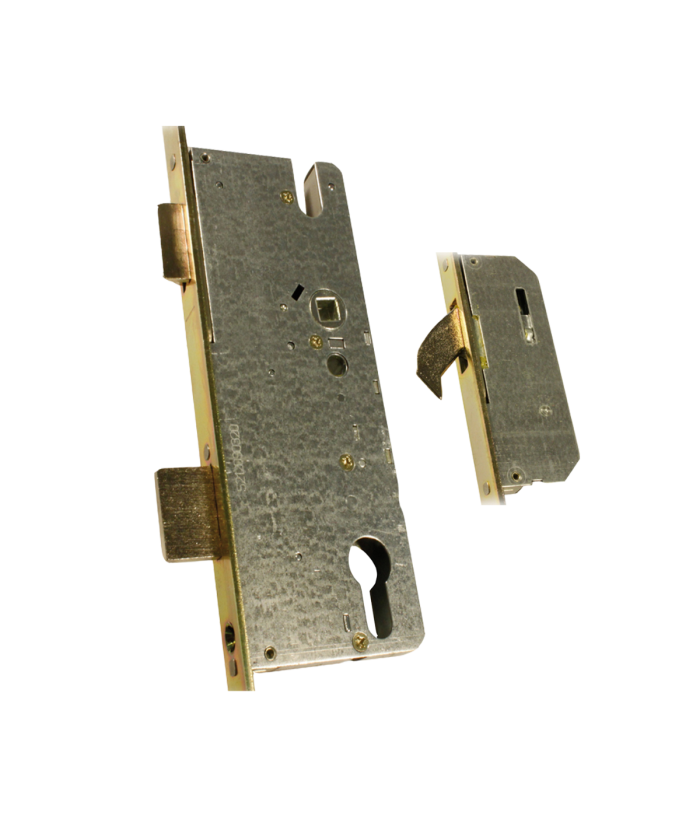

Winkhaus Cobra 2 Hooks 1 Latch Round End Faceplate

This Winkhaus multipoint lock adds additional security to a home by ensuring that the door is secured. It has two hooks and one latch with a rounded end faceplate

35mm (112803), 45mm (109202) 55mm (107408) Backsets. 20mm Rounded End Faceplate. 92mm PZ Centre. Extra Euro Lock available.

Technical Specification: Centre of spindle hole to centre of top hook - 735mm. Centre of spindle hole to centre of bottom hook - 750mm.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
