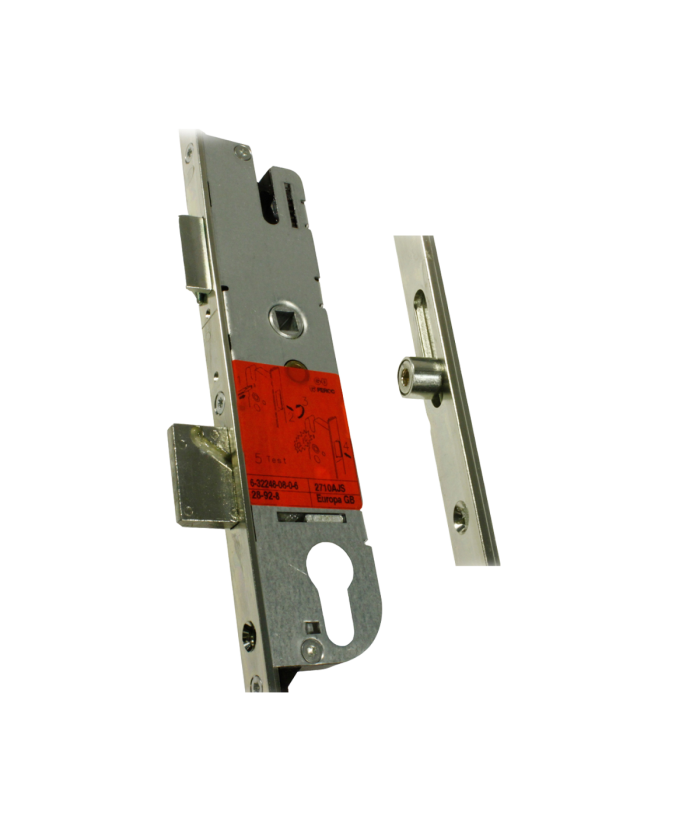

Replacement Deadbolt Lock Suitable for uPVC doors.

New style G-U.

The G-U Multipoint Lock is suitable for use with uPVC doors and is available in 28/35/40/45mm backsets. This GU lock has four rollers as well as a latch and deadbolt. Lever/lever and lever/pad operations.

Technical Information Centre of latch to centre of top roller: 715mm Centre of latch to centre of top middle roller: 255mm Centre of latch to centre of bottom middle roller: 420mm Centre of latch to centre of bottom roller: 890mm

Available with: 28mm L/L (103590) 35mm S/S (108159) 40mm L/L (115346) 45mm S/S (108160) 45mm L/L (123093) Backsets

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
