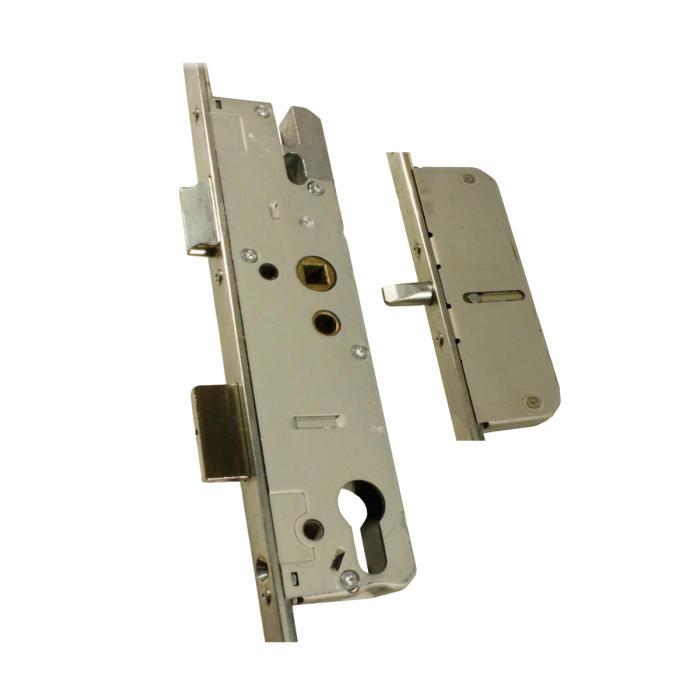

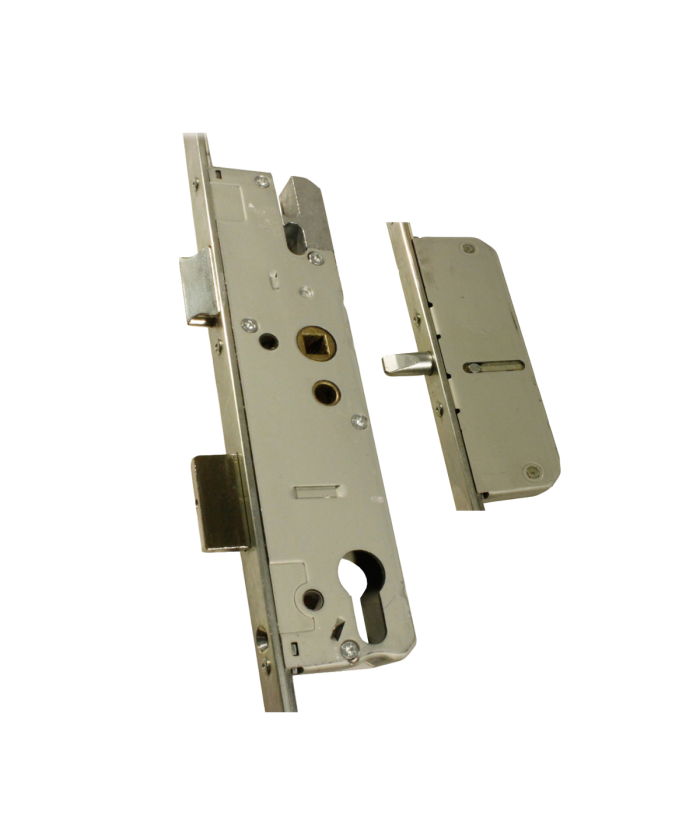

KFV Lever Operated 2 Round Bullet Pins 1 Latch 1 Deadbolt

The KFV Lever Operated Multipoint Lock is suitable for uPVC doors and is available in 28/35/40mm backsets. This multipoint lock is lever operated to ensure ease of use and excellent security.

KFV Locks are highly secure and provide an excellent level of security. This lock uses bullet pins as well as a latch and deadbolt to ensure the strength of the lock and security of the door.

28/35/40mm Backsets. 16mm Faceplate. 92mm PZ Centre.

Technical Specification: Centre of spindle hole to centre of top pin - 725mm. Centre of spindle hole to centre of bottom pin - 760mm.

Available with: 28mm (108512), 35mm (105891), 40mm (113802) Backsets

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
