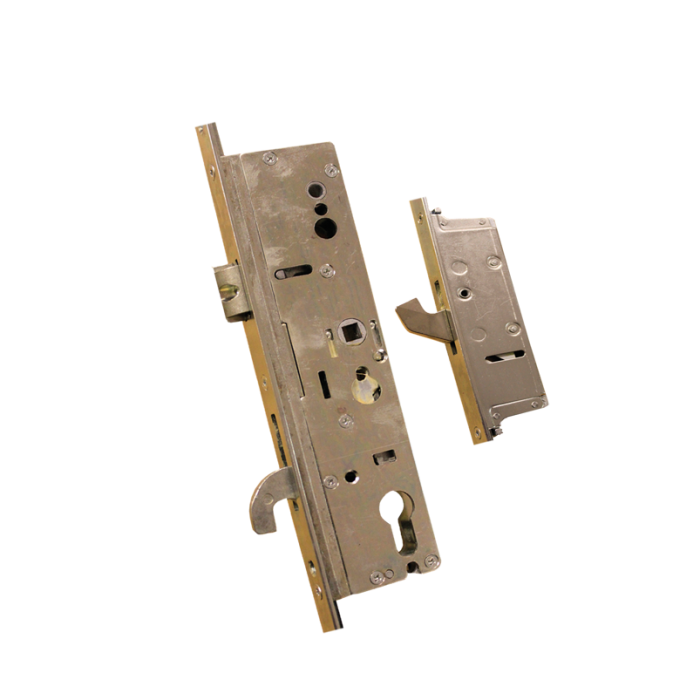

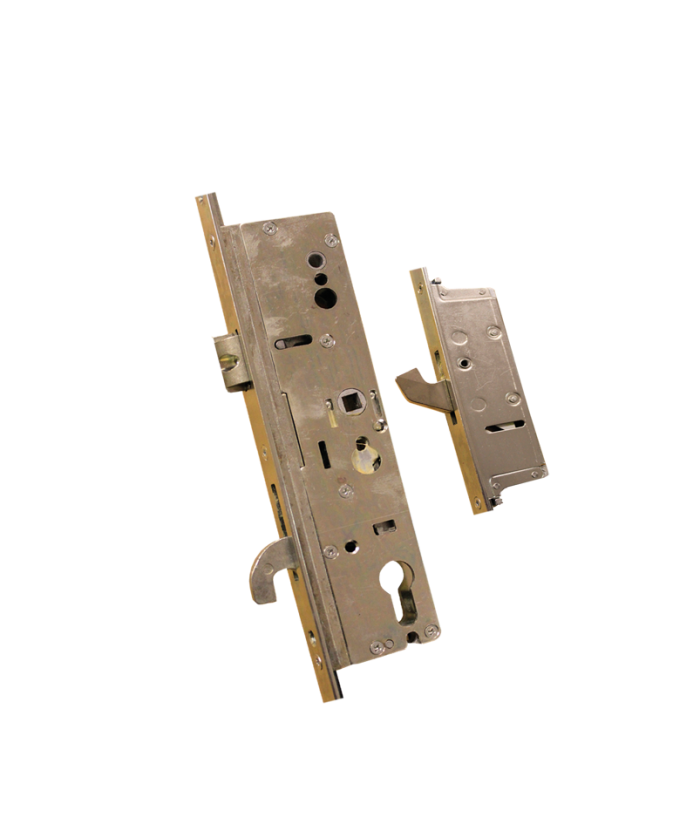

Paddock Lockmaster 3 Hook 2 Pin 4 Roller

This multipoint lock is made by Paddock and is a direct replacement for a matching Lockmaster lock.

This lock has 3 hooks to make the lock as strong as possible, thereby keeping the door as strong as possible too.

3 Hooks. 2 Pins. 4 Rollers. 16mm Faceplate.

92/62mm PZ Centre Available with a 35mm (123094) or 45mm (123095) Backset

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
