Roto 2 Hooks 2 Mushroom Rollers 1 Latch 1 Deadbolt Multipoint

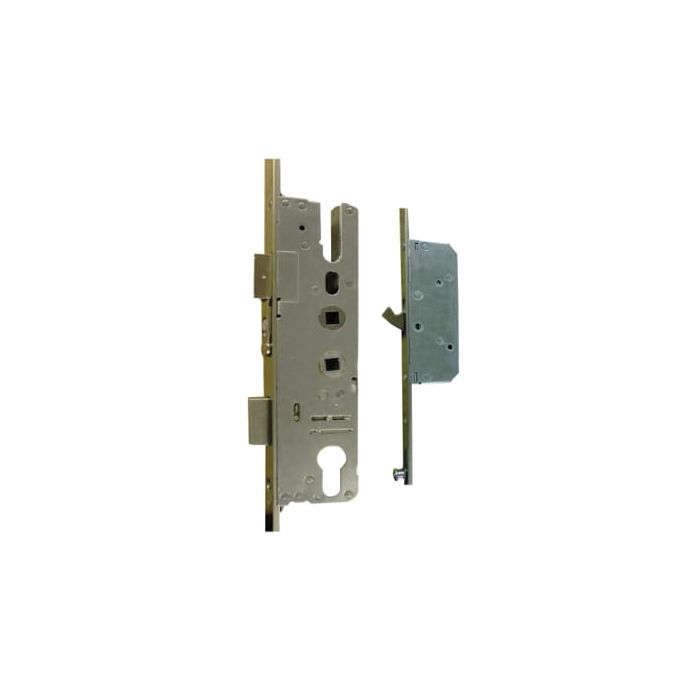

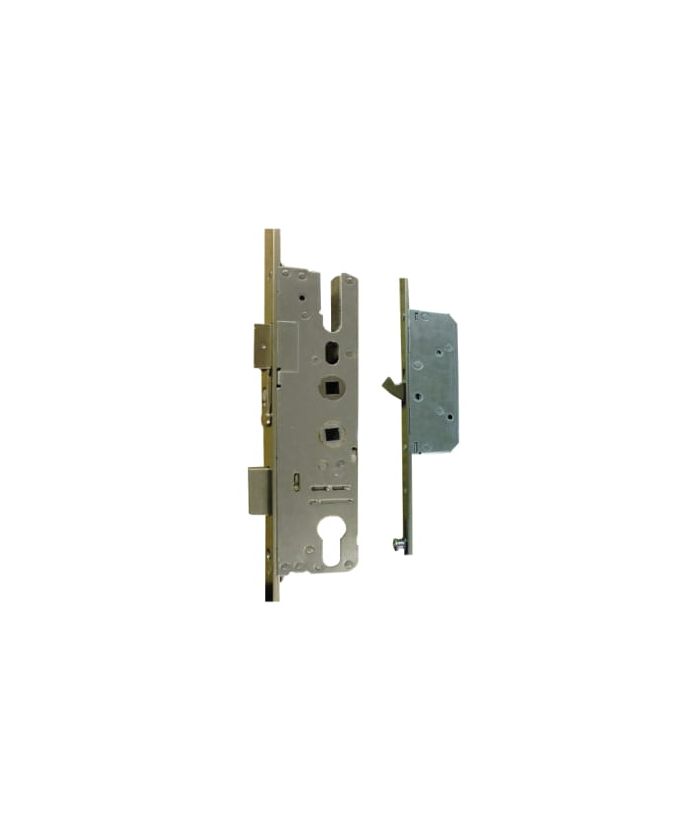

This is a Roto Multipoint Lock, with 2 Hooks, 2 Rollers and a Latch and Deadbolt. Split Spindle (Lever/Lever and Lever/Pad operations).

35mm Backset. 16mm Faceplate. 92mm PZ Centre.

Technical: Centre of spindle to centre of top mushroom: 635mm Centre of spindle to centre of top hook: 460mm Centre of spindle to centre of bottom hook: 495mm Centre of spindle to centre of bottom mushroom 625mm

Available with: 35mm (109254) Backset

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
